STAR Large Precision RF Coaxial Connector Assembly – Cable-End Connector with Coupling Nut
$19.99

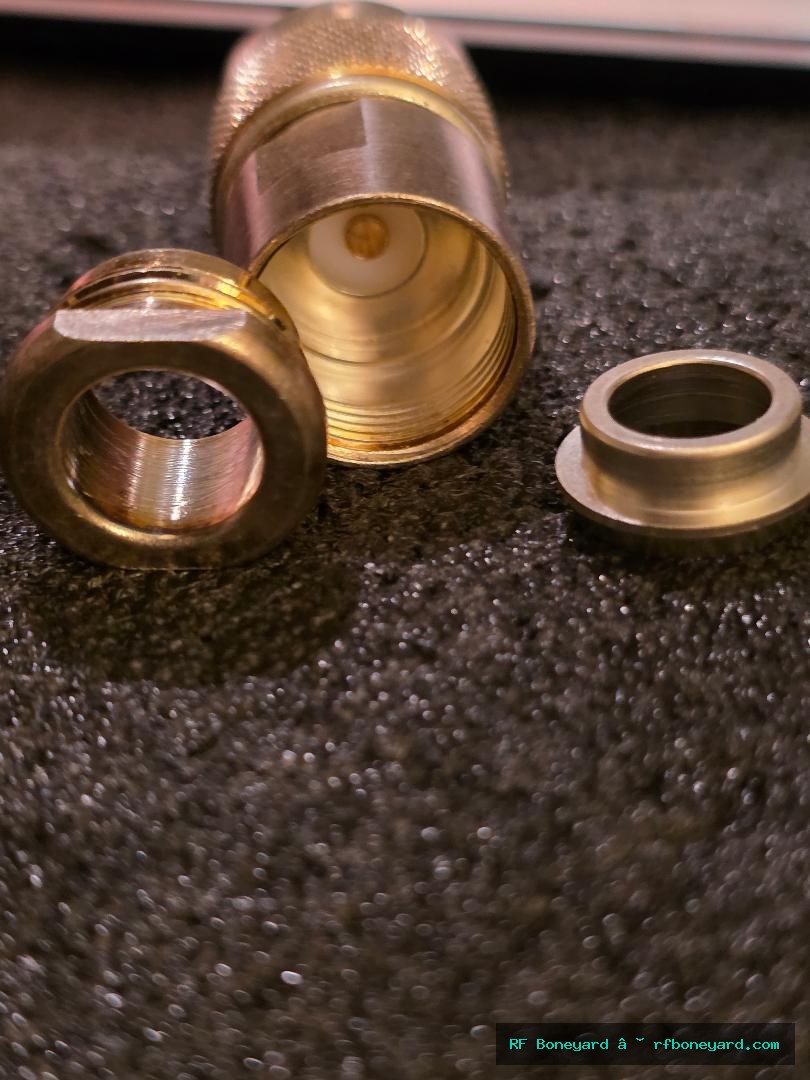

STAR-marked large precision RF coaxial connector assembly from surplus RF inventory. The assembly includes the main connector body with knurled threaded coupling nut, visible center contact and dielectric, plus separate rear hardware shown in the photos: a coupling nut and a flanged rear ferrule / clamp sleeve.
This appears to be cable-end RF connector hardware intended for a larger coaxial cable or specialized RF transmission-line assembly. The connector has a threaded coupling interface and a large internal dielectric structure. It may be useful for RF test equipment restoration, communications hardware, antenna-system work, microwave/RF experimentation, custom cable fabrication, and connector salvage.
Historical Note:
Large threaded RF connector systems were widely used in communications, laboratory, broadcast, industrial, and high-power RF installations where a durable shielded coaxial connection was required. Exact connector family, mating interface, cable compatibility, impedance, frequency range, power rating, and original equipment use must be verified by the buyer before purchase or installation.
Origin Tracker
Bench Stock
Pulled from RF Boneyard bench/service stock for practical repair and restoration use.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Suitable for RF connector restoration, RF test equipment repair, communications equipment, antenna-system hardware, custom coaxial cable work, microwave/RF experimentation, and connector salvage where the buyer can positively identify the exact mating connector series and cable attachment method.
Buyer must verify exact connector family, mating interface, gender, thread dimensions, cable diameter, center-contact dimensions, dielectric style, impedance, frequency range, power rating, and electrical requirements before purchase or installation. Not a universal RF connector replacement.
RF Boneyard Bench Notes
Tester Lead Mapping:
Not applicable; RF connector assembly.
Bench Measurements:
Manufacturer Marking: STAR
Connector Style: Large threaded precision RF coaxial connector assembly
Coupling Style: Knurled threaded coupling nut
Center Contact: Visible center contact present
Dielectric: Red/brown internal dielectric visible
Included Hardware: Main connector body, separate coupling nut, and flanged rear ferrule / clamp sleeve as photographed
Exact Connector Series: Not confirmed
Exact Mating Interface: Not confirmed
Impedance: Not verified
Frequency Range: Not verified
VSWR: Not verified
Power Rating: Not verified
Cable Compatibility: Not verified
Continuity Test: Not performed
Center Contact to Outer Shell Isolation Test: Not performed
Bench Evaluation:
PASS - Random physical inspection completed.
PASS - STAR manufacturer marking is visible on the connector body.
PASS - Center contact and internal dielectric are visibly present.
PASS - Separate coupling nut and rear ferrule / clamp sleeve are included as photographed.
PASS - Buyer must verify exact connector family, mating interface, cable fit, and electrical requirements before installation.
